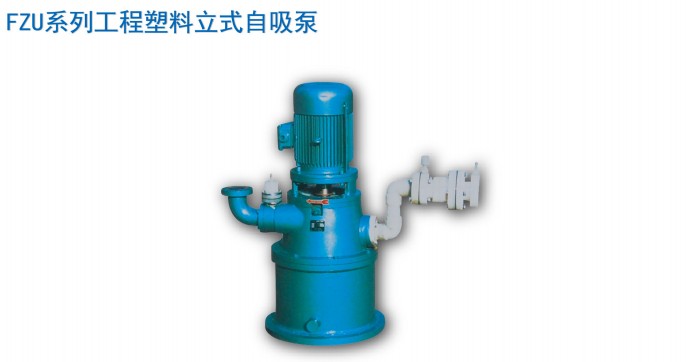

FZU engineering plastic vertical self-priming pump

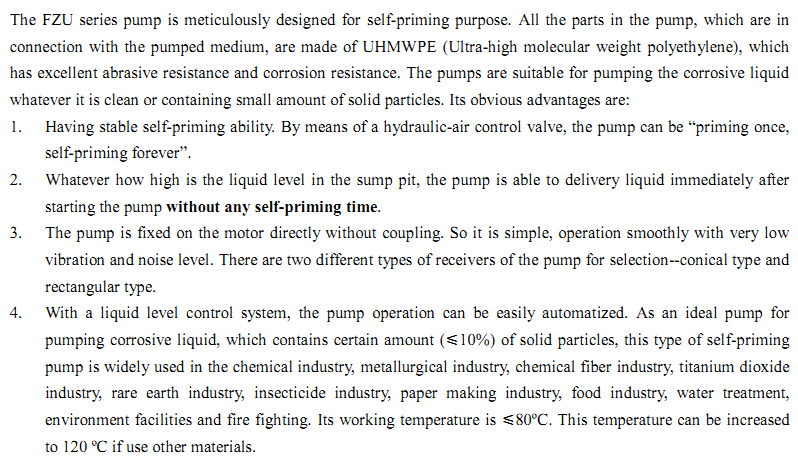

I. General introduction

II. Demonstration of model

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

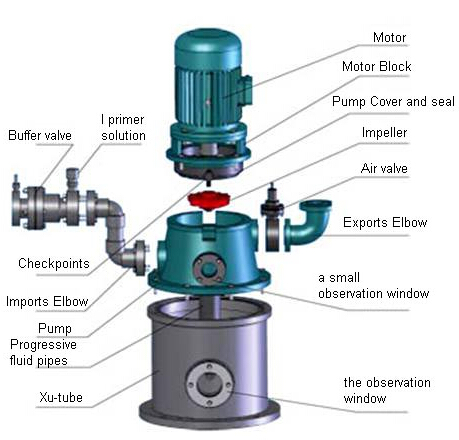

1, Motor 2、Motor Block 3、Pump Cover and seal 4、Impeller 5、Air valve 6、Exports Elbow 7、a small observation window 8、the observation window 9、Buffer valve 10、I primer solution 11、Checkpoints 12、Imports Elbow 13、Pump 14、Progressive fluid pipes 15、Xu-tube

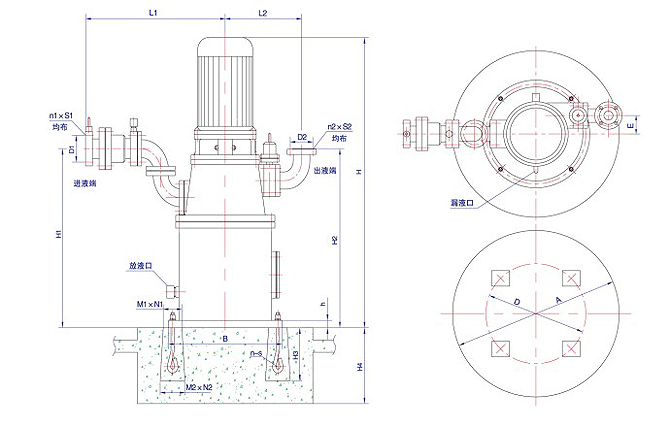

Model	Overall dimensions and installation dimension (mm)																			Weight
Model	D1	n1×s1	H1	L1	D2	n2×s2	H2	L2	E	D	n-s	h	H	M1×N1	M2×N2	H3	H4	A	B	Weight
40FZU-18	110	4×φ18	689	679	110	4×φ18	626	327	81	460	4-M16 ×400	30	1000	90×80	120×110	480	550	850	510	125
50FZU-28	125	4×φ18	788	750	125	4×φ18	706	350	94	510	4-M16 ×400	30	1180	90×80	120×110	480	550	850	550	224
65FZU-50	145	4×φ18	1125	835	145	4×φ18	1068	410	126	660	4-M16 ×400	50	1657	90×80	120×110	500	600	1000	710	330
80FZU-32	160	8×φ18	1125	835	160	4×φ18	1084	425	110	660	4-M16 ×400	50	1657	90×80	120×110	500	600	1000	710	320
100FZU-35	180	8×φ18	1279	996	180	4×φ18	1193	450	136	720	4-M20 ×450	60	1879	120×100	150×130	550	600	1100	780	477
100FZU-38	180	8×φ18	1279	996	180	4×φ18	1193	450	136	720	4-M20 ×450	60	2009	120×100	150×130	550	600	1100	780	570
