1.Structural type is vertical, single-stage and single suction centrifugal pump.
2.Adopts high-rigidity cantilever spindle, without auxiliary bearing structure.

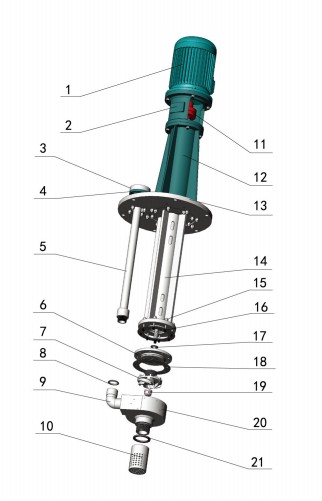

3.Main parts (refers to picture 1)

1) Motor   2) Motor base   3) Discharge flange   4)Upper and lower bearing   5) Outlet pipe   6) Pump cover   7) Impeller
8) Outlet pipe bed   9) Bend  10) Filter casing   11) Coupling   12) Bearing base   13) Base plate   14)Joint pipe
15) Pump bolt   16)Plastic coated spindle   17)Impeller equilizing bed   18) Pump cover bed   19)Impeller end assembly  20) Pump body   21) Filter casing bed

4. Impeller, pump body and other flow passage components are manufactured with ultra-high molecular weight polyethylene (UHPE), other parts are manufactured with corrosion resistant PP and FRPP.

5.Direction of rotation: according to arrow pointing direction.

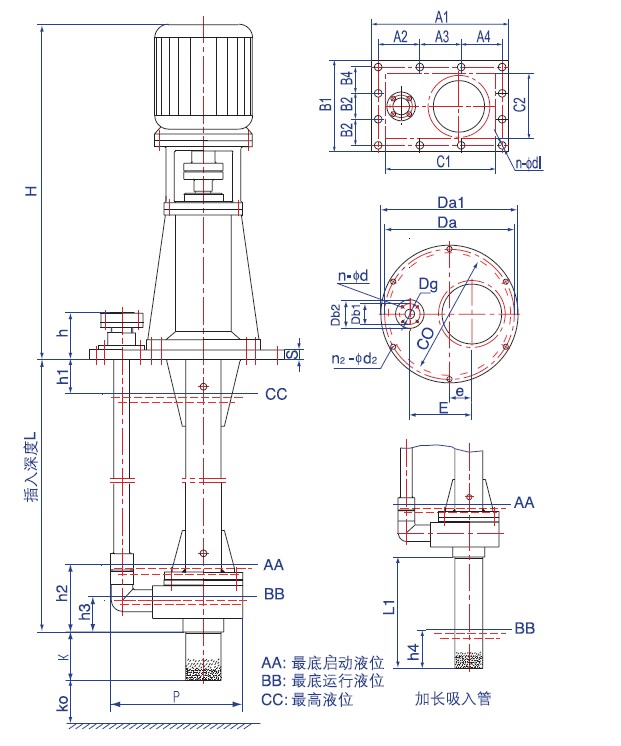

AA: Lowest allowable starting level       BB: Lowest allowable operation level
CC：highest level
