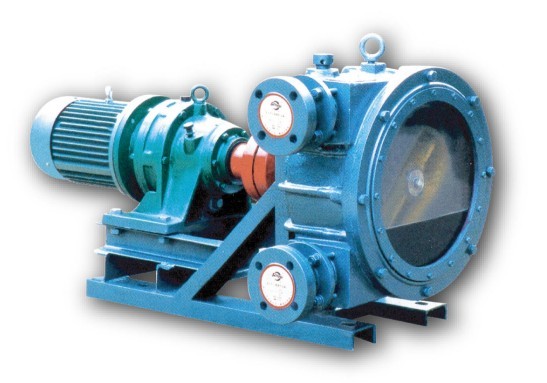

FRU hose pump

I.General introduction

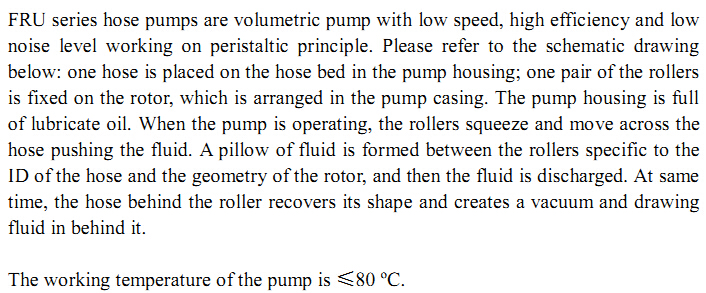

II.Working principle

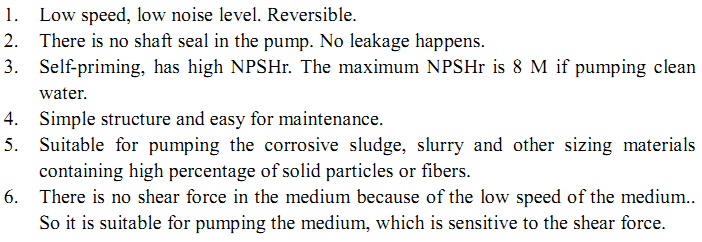

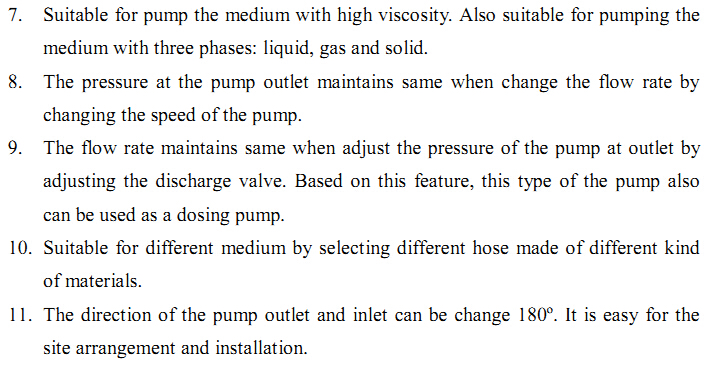

III.Main Features

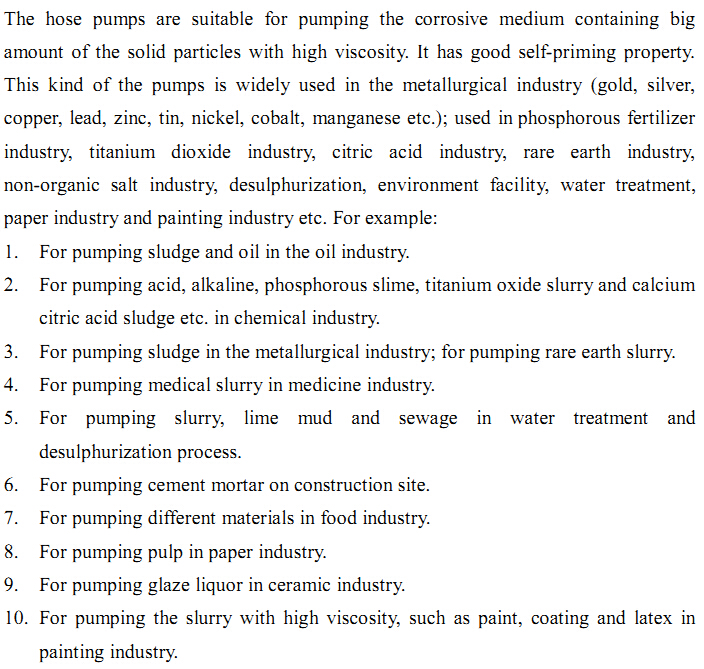

IV.Application

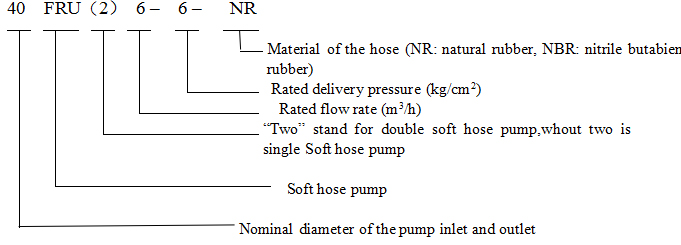

V. Demonstration of model

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

Model		32FRU2	32FRU3	40FRU4	40FRU6	50FRU10	50FRU15	65FRU20	65FRU30	65FRU(2)30
Rated quantity of flow (m3/h)		2	3	4	6	10	15	20	30	30
Rated discharge pressure (kg/cm2)		6
Rated speed (r/min)		42	63	42	63	42	63	42	63	63
Inner diameter of hose (mm)		38	38	50	50	60	60	76	76	60
Suction head of clear water(m)		8
Motor	Model	Y100L-6	Y100L1-4	Y112M-6	Y100L2-4	Y132M2-6	Y132M-4	Y160M-6	Y160M-4	Y160M-4
Motor	Power (Kw)	1.5	2.2	2.2	3	5.5	7.5	7.5	11	11
Hose material		NR(natural rubber) NBR (nitrile rubber)
Diameter of solid allowed to pass(mm)		4	4	6	6	10	10	12	12	10
Joint material		UHPE, 1Cr18Ni9Ti (Stainless steel)								Carbon steel, 1Cr18Ni9Ti (Stainless steel)
Allowed maximum temperature of medium℃		80
Lubricant		1.5L	1.5L	2L	2L	10L	10L	16L	16L	12L

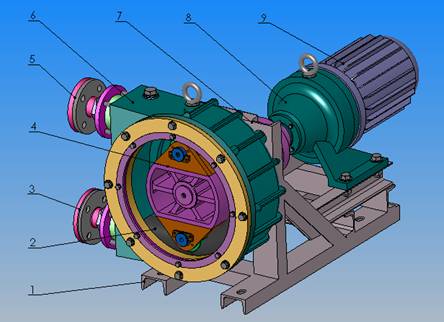

1. Foundation 2. Hose 3. Inlet or outlet end 4. Roller 5. Outlet or inlet end
6. Pump case 7. Coupling 8. Reducer 9. Reducer

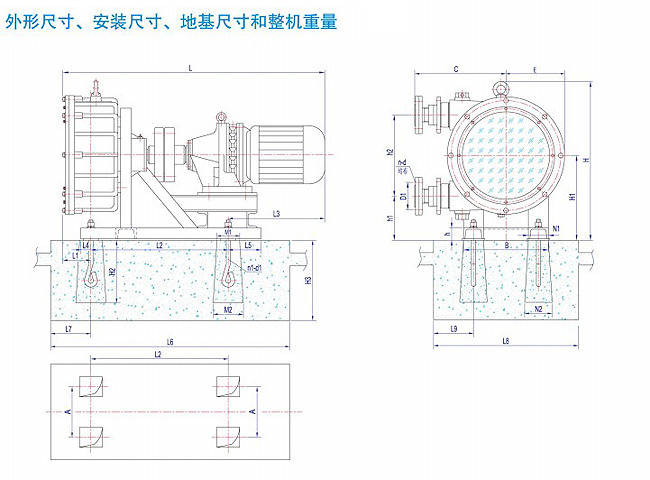

Mo del	Overall dimensions, installation dimension and foundation dimension (mm)																														Weig - ht (Kg)
Mo del	L1	L2	L3	L	h	h1	h2	H1	H	A	B	C	D1	n	d	n1	d1	E	L4	L5	M1	M2	N1	N2	H2	L6	L7	L8	L9	H3	Weig - ht (Kg)
32F RU2	100	535	366	1000	49	184	305	336	612	230	320	335	100	4	φ 18	4	M16 ×250	21 7.5	40	110	90	120	80	110	280	92 0	160	550	160	350	248
32F RU3	100	535	366	1000	49	184	305	336	612	230	320	335	100	4	φ 18	4	M16 ×250	21 7.5	40	110	90	120	80	110	280	92 0	160	550	160	350	250
40F RU4	105	545	403	1053	49	176	325	339	635	260	350	365	110	4	φ 18	4	M16 ×300	235	40	130	90	120	80	110	330	95 0	160	580	160	400	280
40F RU6	105	545	383	1033	49	176	325	339	635	260	350	365	110	4	φ 18	4	M16 ×300	235	40	130	90	120	80	110	330	95 0	160	580	160	400	273
50F RU10	130	680	480	1290	54	168	515	426	845	350	460	490	125	4	φ 18	4	M20 ×350	335	50	145	120	150	100	130	380	11 00	160	660	155	450	542
50F RU15	130	680	480	1290	54	168	515	426	845	350	460	490	125	4	φ 18	4	M20 ×350	335	50	145	120	150	100	130	380	11 00	160	660	155	450	538
65F RU20	158	820	572	1550	66	228	660	558	10 62	480	630	600	145	4	φ 18	4	M20 ×400	42 2.5	100	200	120	150	100	130	420	13 50	230	820	170	500	995
65F RU30	158	820	572	1550	66	228	660	558	10 62	480	630	600	145	4	φ 18	4	M20 ×400	42 2.5	100	200	120	150	100	130	420	13 50	230	820	170	500	1000
65FR U(2) 30	227	455	740	1422	58	212	515	470	890	350	470	557	145	4	φ 18	4	M20 ×350	335	145	200	120	150	100	130	380	10 00	245	660	155	450	895
